EK
2 Pole
1 Phase
3600 RPM
|
|
EK |
| The EK Series are synchronous self-regulating brushless generators. | |
| Operating system : | The self excitation is obtained through a stator winding angularly positioned with respect to the power winding and charged by a capacitor; the load voltage self-compensation is due to the rectification of the voltage induced by the inverse field in the rotor. |
| Electrical characteristics : | Referred to following conditions: enviromental temp. <40° C, height < 1000 m a.s.l., continuous duty S1, cos pf=1 |
| Short circuit current : | More than 3 times the rated full load current. |
| Technical Information |
| 120/240V 60 Hz 3600RPM | |||||||
Type |
KvA |
% Eff |
Air Movement |
Noise (dBA) |
B3/B14 Weight |
J609 |
|
| EK 3.7 | 3.7 | 73 | 5.3 | 60 | 77 | 20 | 18.6 |
| EK 5.2 | 5.2 | 77 | 5.3 | 60 | 77 | 24 | 21.7 |
| EK 6.2 | 6.2 | 77.5 | 5.3 | 60 | 77 | 28 | 25.4 |
| EK 7.5 | 7.5 | 80 | 5.2 | 60 | 77 | 33 | 30.5 |
| EK 8.8 | 84 | 5.3 | 5.2 | 60 | 77 | 35.5 | 35.5 |
| EK 10.0 | 10.0 | 84 | 5.2 | 60 | 77 | 38 | 35.0 |

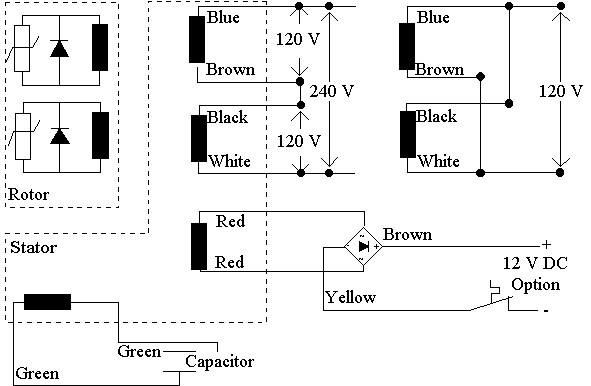

| Electrical Diagram |

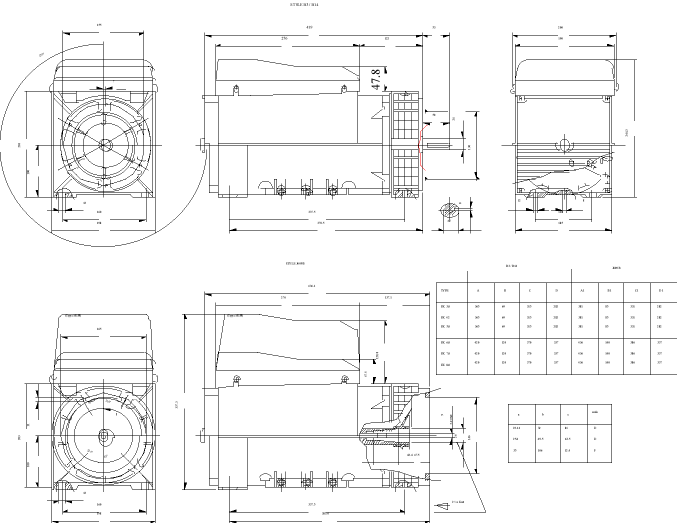

| Overall Dimensions |

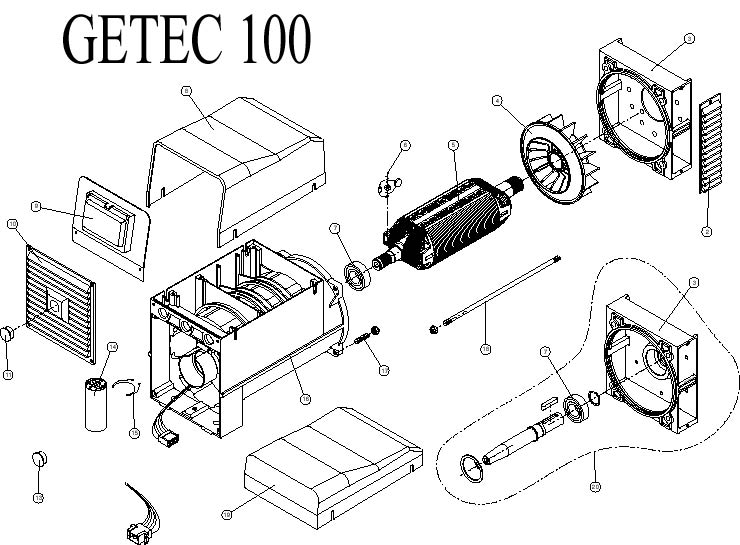

| Exploded View & Parts List |
 |
||
| Item #1 | GETEC # | Description |
| 2 | 600869 | Front Grid |
| 3a | 600870 | Front Shield J609A |
| 3b | 600871 | Front Shield J609B |
| 3c | 600872 | Front Shield B3-B14 |
| 4a | 600873 | Fan |
| 4b | 600874 | Fan with hole for J609B |
| 5a | 600875 | Rotor E100 3.7 |
| 5b | 600876 | Rotor E100 5.2 |
| 5c | 600877 | Rotor E100 6.2 |
| 5d | 600878 | Rotor E100 7.5 |
| 5e | 600879 | Rotor E100 8.8 |
| 5f | 600880 | Rotor E100 10.0 |
| 6 | 600881 | Diode & Varistor & EMC Capacitor |
| 7 | 600882 | Bearing |
| 8a | 600883 | Black top cover |
| 8b | 600884 | Red top cover |
| 9a | 600885 | Blank E100 panel |
| 9b | 600886 | Single phase panel |
| 10 | 600887 | End cover |
| 11 | 600888 | Tap |
| 12a | 600889 | Black E100 end panel |
| 12b | 600890 | Black end panel |
| 13 | 600891 | Tap |
| 14a | 600892 | Capacitor 20 uF 450 |
| 14b | 600893 | Capacitor 25 uF 450 |
| 14c | 600894 | Capacitor 30 uF 450 |
| 14d | 600895 | Capacitor 40 uF 450 |
| 15 | 600896 | Capacitor block spring |
| 16a | 600897 | Housing M & Stat. E100 3.7 120/240 V |
| 16b | 600898 | Housing M & Stat. E100 5.2 120/240 V |
| 16c | 600899 | Housing M & Stat. E100 6.2 120/240 V |
| 16d | 600900 | Housing L & Stat. E100 7.5 120/240 V |
| 16e | 600901 | Housing L & Stat. E100 8.8 120/240 V |
| 16f | 600902 | Housing L & Stat. E100 10.0 120/240 V |
| 17 | 600903 | Bolt - M8 * 30 |
| 18 | 600904 | Shaft bolt |
| 19a | 600905 | Black top cover |
| 19b | 600906 | Red top cover |
| 20 | 600907 | KIT : from J609B to B3/B14 |
