NECKAR II
UTILITY GENERATOR SET
WITH HYDRAULIC PUMP DRIVE
STANDARD FEATURES
Slide Out Tray |
Generator Reconnectable from 120 Volt to 120/240 Volt |
|
|
All Modular Design |
B & S Vanguard-O.H.V. Engine |
|
|
Low Oil Shut-Down |
Laminated Low Noise Engine Housing |
|
|
Remote Start-Stop |
Full Pressure Lubrication |
|
|
Starter Lock Out |
Dual Element Air Cleaner |
|
|
Industry-Proven Serpentine Belt Drive |
12 Volt Electric Start |
|
|
Electric Engage and Disengage of Hydraulic Pump |
Cast Iron Cylinder Sleeves |
|
|
Plug-In DC Wiring |
Fuel Lift Pump |
|
|
Brushless Maintenance Free Generator |
Low Oil Pressure Shutdown |
|
|
Lifetime Lubricated Bearings |
Electronic Ignation |
|
|
High Motor Starting |
Low Engine Speed |

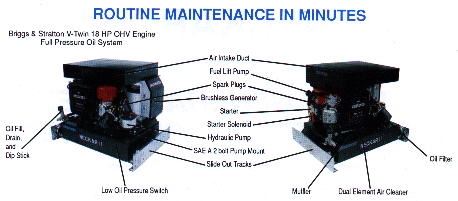

| The GETEC Neckar II utility AC generator line is designed for easy access serviceability, low noise, and long life. All service parts, such as oil dip stick, oil filter, oil dragin, air cleaner element, spark plugs, valves, starter, starter solenoid, hydraulic pump, gas filter, and belt are easily accessible without removeing the unit from its mount. Routine maintenance can be accomplished in minutes. The set is equipped with a Briggs & Stratton 18HP Vanguard overhead valve V-Twin engine. The engine features include O.H.V. design for more power per voltume of displacement, cooler operation, less carbon buildup, reduced oil consumption, improved fuel economy, cast iron sleeve cylinders, dual air cleaner element, full pressure lubrication, low oil shutdown, electric start, low noise muffler, fuel pump, and battery charging circuit. | The GETEC maintenance free
generator is completely brushless with lifetime
lubricated bearings, and is re-connectable from 120 Volt
to 120/240 Volt. The base is constructed of Heavy Guage Steel to insure stability between main components. Various optional equipment, such as remote start-stop instrument panel with tachometer and hourmeter, sound shield, and various displacement hydraulic pumps are available. Consult with factory. |
| Specifications | |||
| Model | Neckar IIa | Neckar IIb | Neckar IIc |
| Watts | 5000 | 6000 | 7000 |
| Volts | 120 V or 120/240 V |
120 V or 120/240 V |
120 V or 120/240 V |
| Horsepower | 18 | 18 | 18 |
| Displacement | 34.75 ci (570 cc) | 34.75 ci (570 cc) | 34.75 ci (570 cc) |
| Hydraulic Pump | 9 GPM at 2000 PSI |
9 GPM at 2000 PSI |
9 GPM at 2000 PSI |
| Dimensions | 29W * 22L * 24H | 29W * 22L * 24 H | 29W * 22L * 24H |
| Weight (Lbs.) | 196 | 206 | 216 |
 |
A World of Power |
