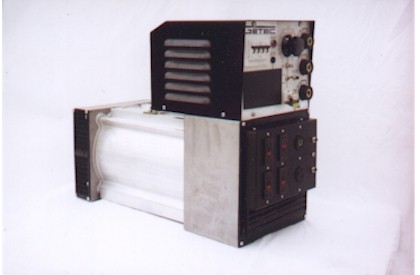

HYDRA-WELD DC
HYDRAULICALLY-DRIVEN
WELDER & AC GENERATORS SETS

Models
200-4 / 225-4 / 250-5.6		 Models
300-16 & 400-16

Go to www.getec.com for the latest Models

Model 220-4 225-4 250-5.6 300-16 400-16
Welder
Weld Amps 200 225 250 300 400
Strike Voltage 65-75 75 75 88 88
Weld Voltage 23-30 21.6 - 28 20-29 21-32 21-36
Type DC DC DC DC DC
Speed (RPM) 3600 3600 3600 3600 3600
Insulation Class H H H H H
Protection Thermal Thermal Thermal Thermal Thermal
Duty 45% 65% 65% 70% 70%
Drive Power 10 HP 18 HP 21 HP 28 HP 33 HP
Generator
Frequency 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
KVA 4 Kw 4.2 Kw 5.6 Kw 8 Kw - 120
16 Kw - 240		 8 Kw - 120
16 Kw - 240
Voltage Single Phase Single Phase Single Phase Single or
Three Phase		 Single or
Three Phase
Cos 1 1 1 1 1
Hydraulic Requirements
Flow (GPM) 16.5 18.8 18.8 30 40
Pressure (PSI) 2000 2000 2400 2000 2000
Dimensions
(H" * W" * L")		 14½ * 14 * 27 14 * 8 * 30 14 * 8 * 30 22 * 12 * 35 22 * 12 * 39
Weight (Lbs) 148 140 148 270 330
